Brock's Performance Tiwinder Blue Race Baffle Suzuki GSX-R1000 (05-06) Exhaust System

Home > Suzuki >

Alternative Views:

Brock's Performance Tiwinder Blue Race Baffle Suzuki GSX-R1000 (05-06) Exhaust System

Sale Price $2,199.00 Call For Racer or Military Discount

Availability: Usually Ships in 24 Hours
Product Code: 390274

Logo plate:

Description

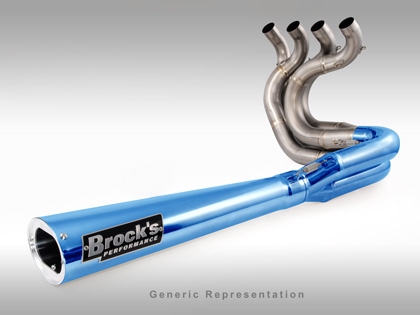

Titanium Sidewinder Performance Exhaust System

Brock's Performance TiWinder™ (Patent No.: US D612,312 S and US D612,313 S ) Full Titanium ‘Elliptical’ Sidewinder for the 2005-06 Suzuki GSX-R1000. World-class engineering and craftsmanship are combined with exotic materials to produce an exhaust system second to none.

Developed for use in conjunction with all 1.5” thick aftermarket billet oil pans utilizing our new ‘elliptical’ megaphone outlet for maximum ground clearance during the hardest chassis-dragging launches. This additional ground clearance also makes our new TiWinder™ more user-friendly during cornering as a result of the best right hand cornering clearance on the market. Note: Stock oil pan and oil filter may also be used.

Utilizing our industry-first 4-2-1 Sidewinder configuration, the TiWinder™ outperforms any other system we have ever tested/manufactured not only on the dyno, but, more importantly, during real world drag strip testing. Stock displacement to BIG CC ‘mountain’ motors benefit alike from maximum peak AND average horsepower combined with a smooth linear torque curve throughout the entire rev range from launch to limiter. Constructed of a combination of exotic titanium alloy tubing, we offer the first aftermarket production motorcycle exhaust system in the world to use the Ti-1Cu-0.5Nb series high-temperature blend in critical areas to handle the extreme temperatures generated by the use of nitrous oxide. The ‘grudge’ crowd will be happy to hear that the entire system only weighs 5.3 lbs without the baffle!

Spring-mounted utilizing our newly designed ‘big cc’ stainless steel spigots with billet aluminum clamp plates for quick, between round maintenance and designed for use with stock or quick access clutch covers (modification to certain aftermarket covers required - consult our technical department for additional details).

Dual O2 bosses allow independent Air/Fuel measurements in headpipes 1&2 and/or 3&4 for more precise cylinder ‘trim’ measurements.

System includes replacement laser-cut stainless steel lower radiator mounting bracket, and a longer rear brake clevis to allow use of your stock rear brake lever. Right side fairing modifications required; instructions included. Ask anyone who has picked up one of these works of art… ”WOW!” and “DAMN!” are the most used terms.

This is the system used by Rickey Gadson on the world’s quickest ZX-14 AMA Dragbike Real Street / MIROCK Real Street machine at 7.83 @ 177MPH

Features

Elliptical megaphone with removable street baffle
Show-polished finish
World class craftsmanship, fit, and finish
Dual 18mm O2 sensor bungs pre-installed
Oil cooler removal kit included; oil line kits for oil cooler use available (sold separately)
Fairing modifications required; installation hardware and instructions included
Includes (Emissions/PAIR) Block Off Cap and instructions for decel-pop reduction
May be used with OEM oil pan; aftermarket billet pan suggested for maximum ground clearance
Includes Brock’s lifetime direct support package
At no additional charge
Select from increased drivability/fuel mileage (pump gas) or race-proven (race fuel) track maps via our map support program
At no additional charge
